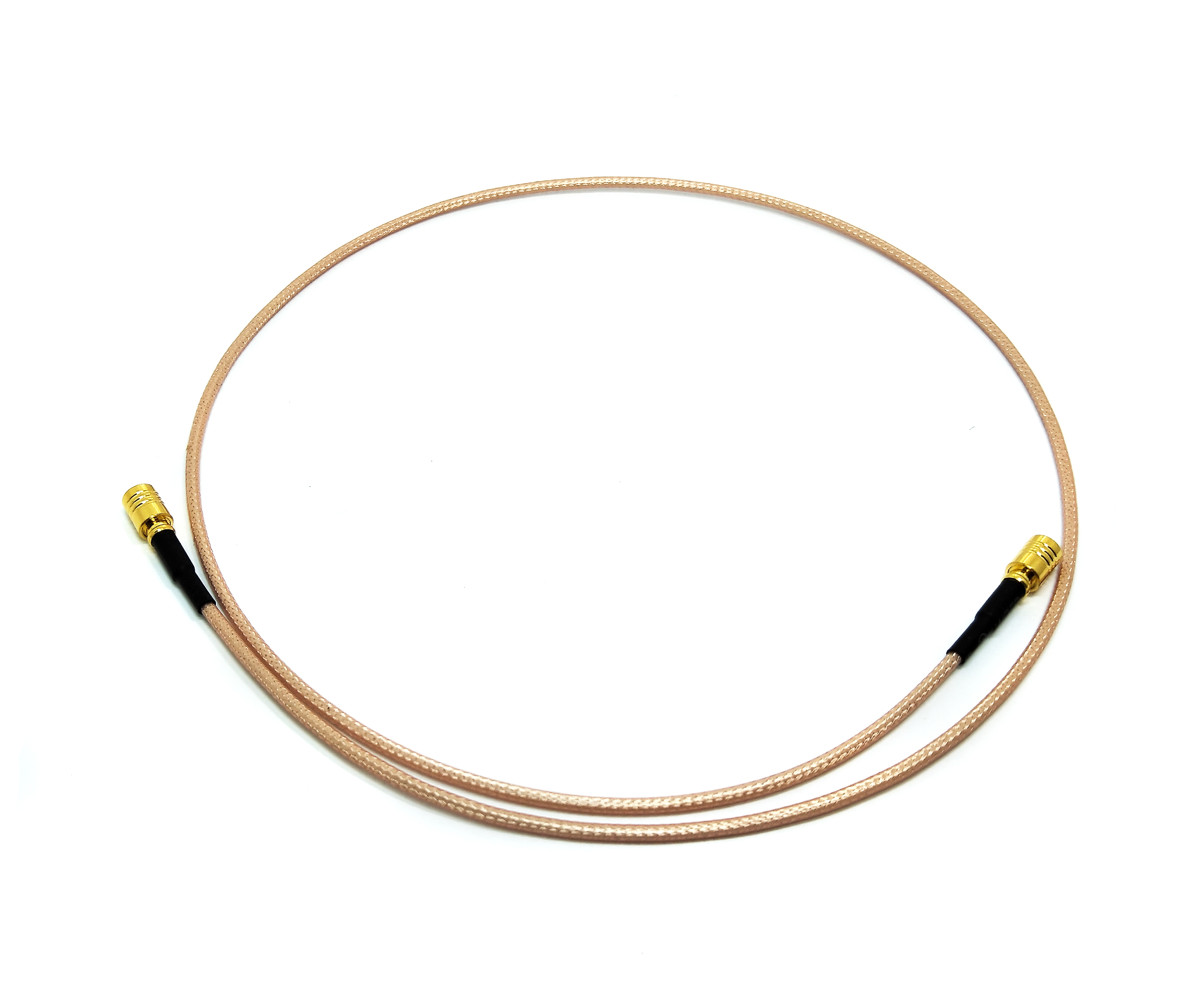

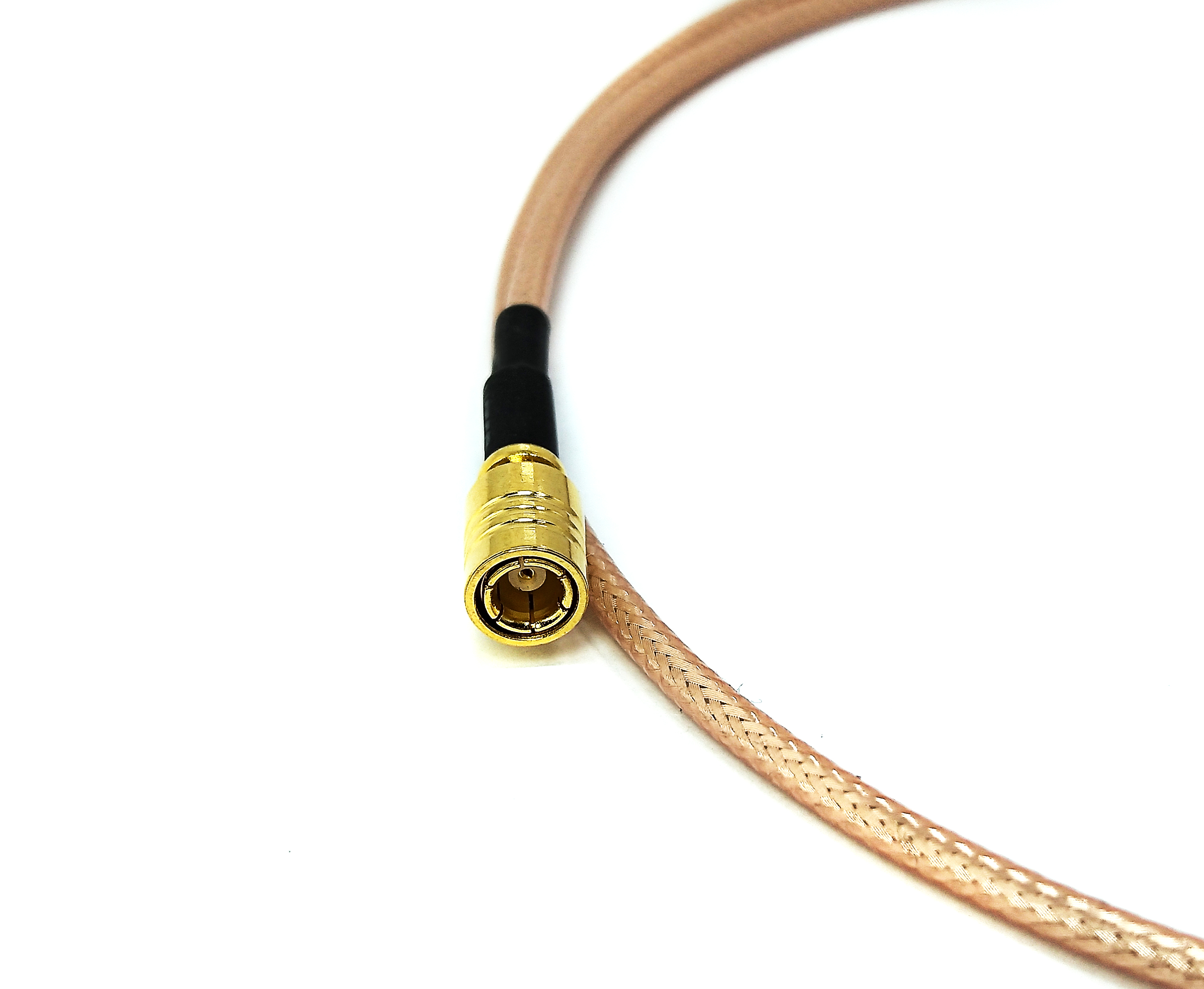

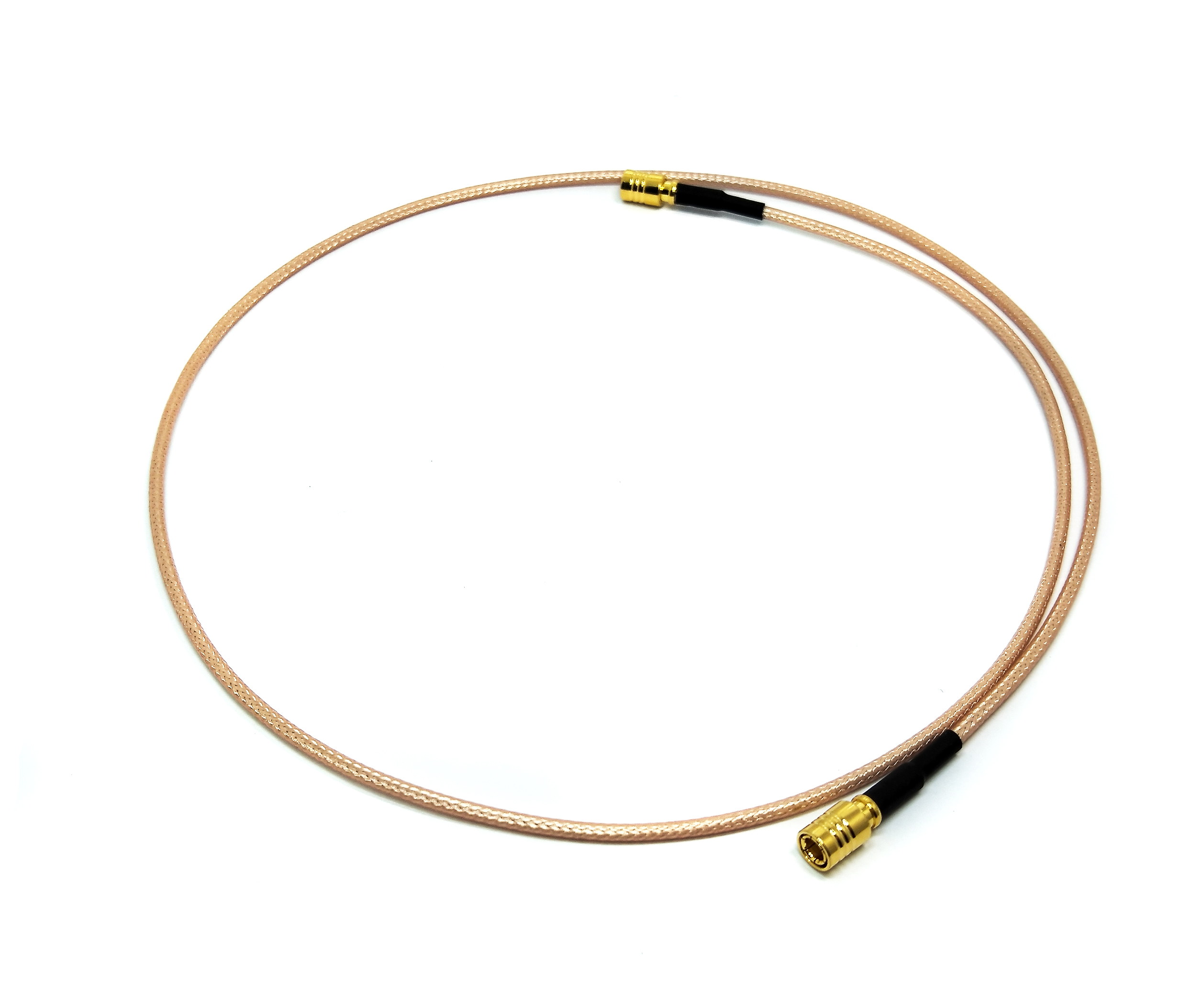

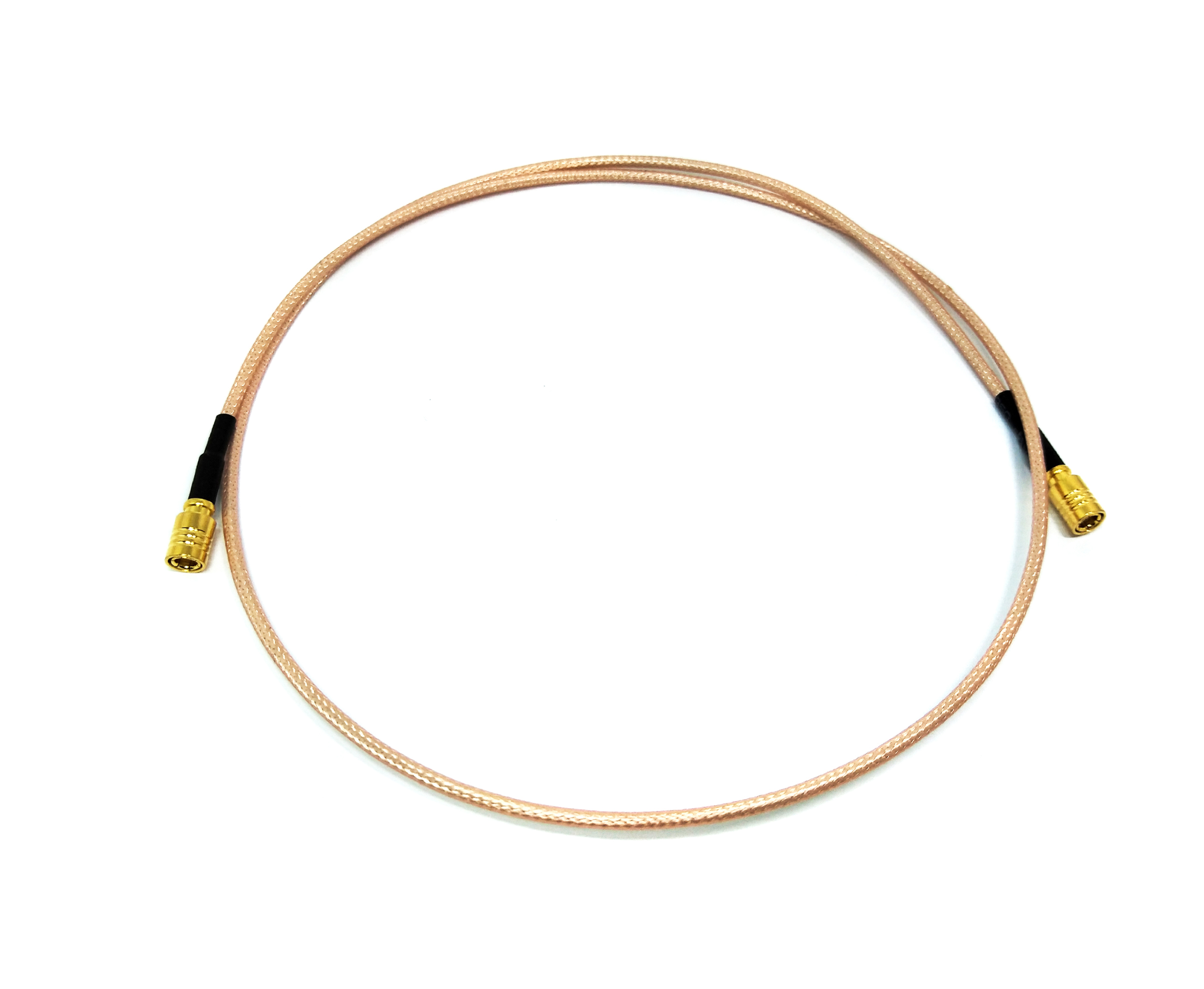

SMB MALE STRAIGHT to smb connector male plug rg316 rf coaxial cable SMB
SMB MALE STRAIGHT to smb connector male plug rg316 rf coaxial cable SMB
Overview
Quick Details
- Place of Origin:
-
Jiangsu, China
- Brand Name:
-
RFVOTON
- Model Number:
-
smb male to smb male rg316
- Type:
-
Smb
- Application:
-
RF
- Gender:
-
Male
- Pins:
-
1P
- Plating:
-
Nickel/gold
- Material:
-
Brass
- Insulator:
-
PTFE/Plastic
- ROHS:
-
ISO9001:2000
- Pin contact:
-
Brass
- Risilent contact:
-
Beryllium copper
- O-ring seling:
-
6146 silicon
- Elastic contact:
-
Tin brass with gold or sliver plated
- Produce equipment:
-
CNC
- Connector type:
-
smb male rg316
Product Description
SMB MALE STRAIGHT to smb connector male plug rg316 rf coaxial cable SMB
RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA,
SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as
BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA,
SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as
BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
|
Temperature range
|
65～+165°C
(PE Cable -40～+85°C)
|
|
Vibration
|
100m/s2 (10~500Hz)
|
|
Impedance
|
DC～4GHz(50Ω); 0～2GHz(75Ω)
|
|
Frequency Range
|
DC – 11GHz
|
|
Working Voltage
|
335V max
|
|
Break-down Voltage
|
1000V rms @ sea level
|
|
Contact resistance
|
≤0.4 OHM @ inner contact
≤1.5 OHM @ outer contact |
|
Average power
|
3KW max
|
|
Insulation resistance
|
≥10000M OHM
|
|
VSWR
|
Straight ≤ 1.25
Right angle ≤ 1.45 |
|
Durability (mating)
|
≥500 (cycles)
|
Material & Plating
SMB MALE STRAIGHT to smb connector male plug rg316 rf coaxial cable SMB
|
Body
|
Brass
|
Nickel plated / Gold plated
|
|
Inner Pin
|
Brass
|
Gold plated
|
|
Resilient Contact
|
Beryllium
|
Gold plated
|
|
Socket Contact
|
Beryllium
|
Gold plated
|
|
Insulator
|
PTFE
|
|
|
Crimp Ferrule
|
Copper alloy
|
Nickel / Gold plated
|
|
O-ring sealing
|
6146 silastic
|
Applicable Standard
MIL-C-39012;
CECC 22130;
IEC 60169-10
CECC 22130;
IEC 60169-10
