products

• RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
• We focus on coaxial assemblies
• Our custom RF cable assemblies are built-in and shipped worldwide
• RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
• RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
• RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
• If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department

•  The joining device of 7/16(L29) type has whorl to join the organization, its characteristic is the power, the capacity is large, Voltage little to stay Bob, three steps it pays to be superior to transfer performance , kind airtight have, Suitable for radio, TV aerial system, jump line join and microwave communication system present cable connection spend mainly.



• Temperature range	-40~+85°C
  Vibration	100m/s2 (10~500Hz)
  Impedance	50 OHM
  Frequency Range	DC – 3800MHz
  Working Voltage	2700V max
  Dielectric Withstanding Voltage	≥6000V RMS，50Hz，at sea level
  Contact resistance	≤1.5  mΩ @ inner contact ≤1     mΩ @ outer contact
  Weatherproof Rate	IP67
  Insulation resistance	≥10000M OHM
  VSWR	≤1.2 @DC-4000MHz
  Durability (mating)	≥500 (cycles)

• Material & Plating

  Body	Brass	Nickel plated / Alloy plated
  Inner Pin	Brass	Gold or Silver plated
  Resilient Contact	Beryllium Copper	Nickel plated
  Socket Contact	Beryllium or tin bronze	Gold or Silver plated
  Insulator	PTFE
  Crimp Ferrule	Copper alloy	Nickel / Gold plated
  O-ring sealing	Silicone Rubber

•  APPLICABLE STANDARD

  LCF78-50A.UCF78-50A

  IEC 339/50-22-3 M32060

Q:what’s your company MOQ?
A: In generally, if use customer brand, we will ask at least 500-800pcs, this we can negotiate.
Q: What’s your delivery time?

A: This please ask our stock in first, products can send out once receive your deposit.

If use customer brands, we will take a 3-5days to prepare materials and mass production.

Q: Can your company accept customize?

A: Welcome OEM & ODM.

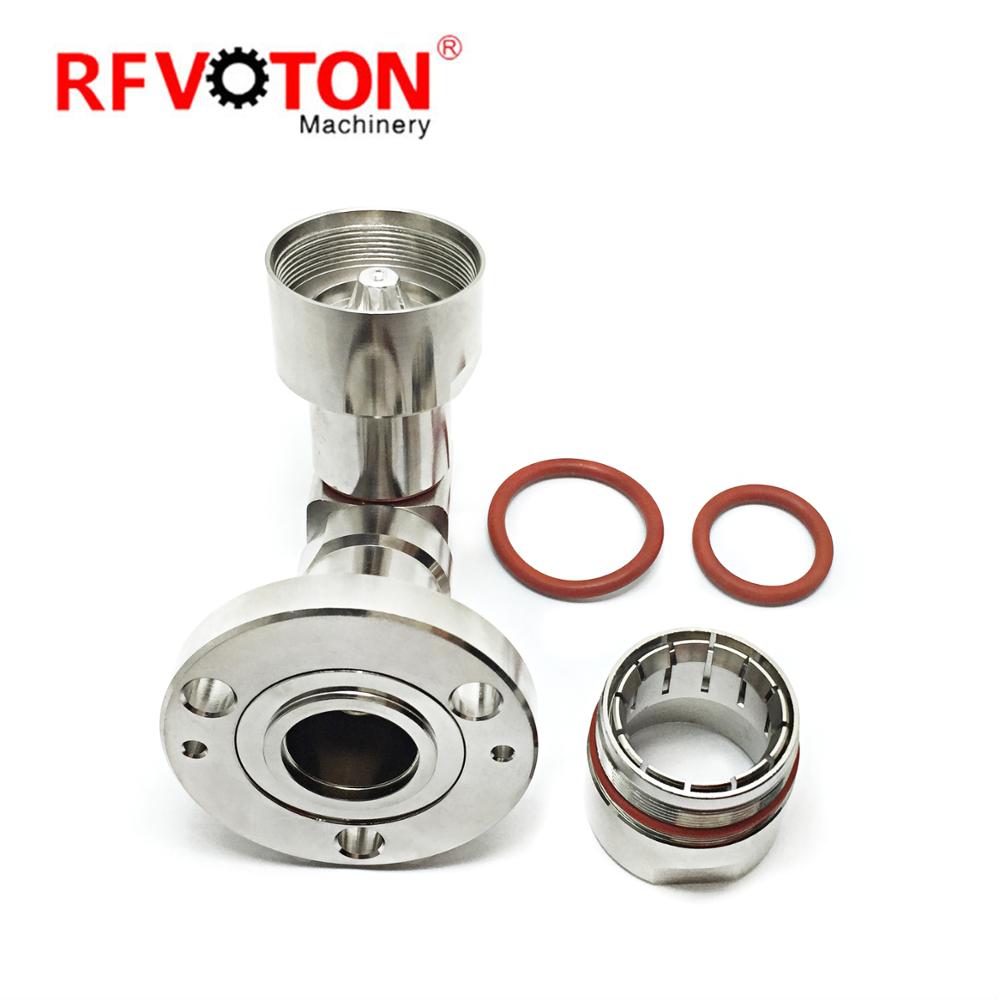

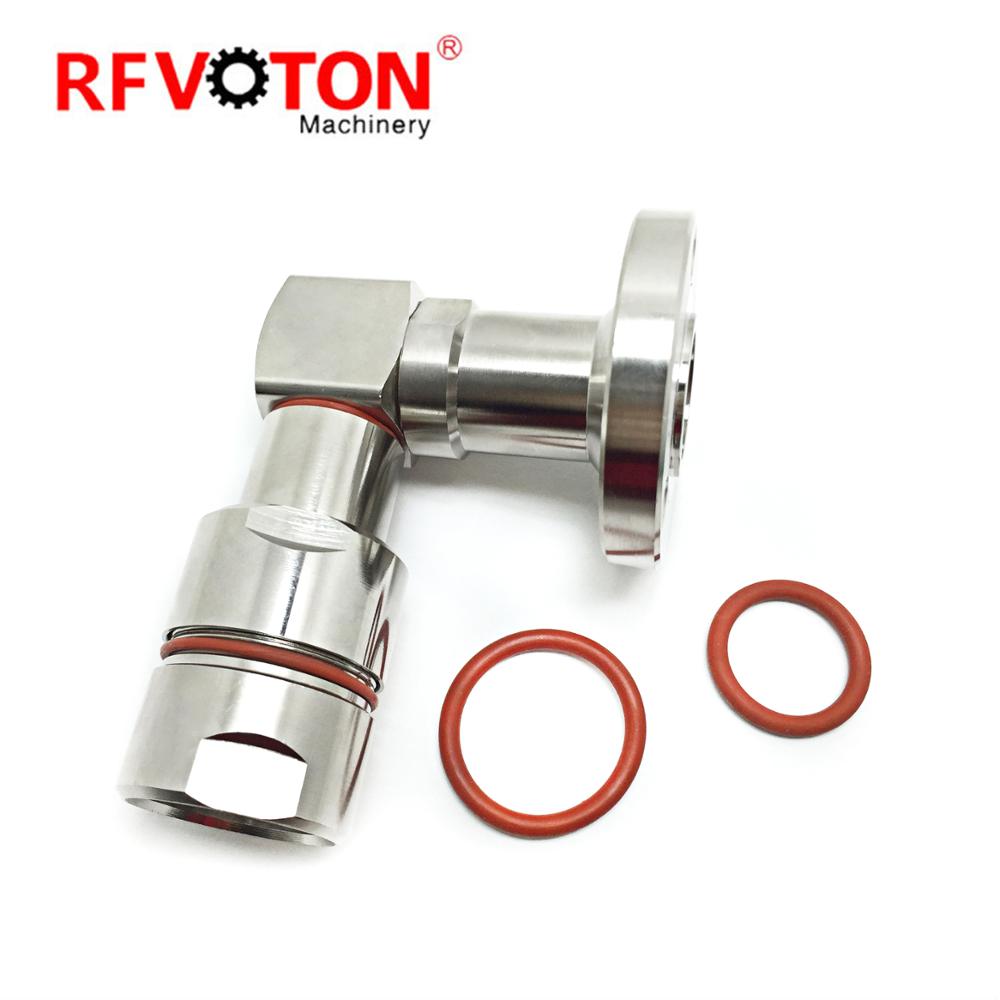

7/8" EIA flange R/A connector

 7/8" EIA flange R/A connector

7/8" EIA flange R/A connector

 What we could do for you are:
1) factory sell directly
2) long-term,strong and steady supplying ability
3) delivery time: 1-2 working days
4) do as your requirements on package,brand or other designs
5) strong sales promotion policy
6) ex-factory price and competitive price
7) we can provide you a good survice
8) replying you asap.(will reply you 10-20 mins on the basis of getting your require.)
Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.

7/8" EIA flange R/A connector

Contact US

If you are interest in any of our products, please feel free to contact us for more information. We will give you a satisfied response during 12 hours!

RFVOTON RF Connector Coaxial Connector 7/8" EIA Flange R/A Connector For 7/8 Cable
