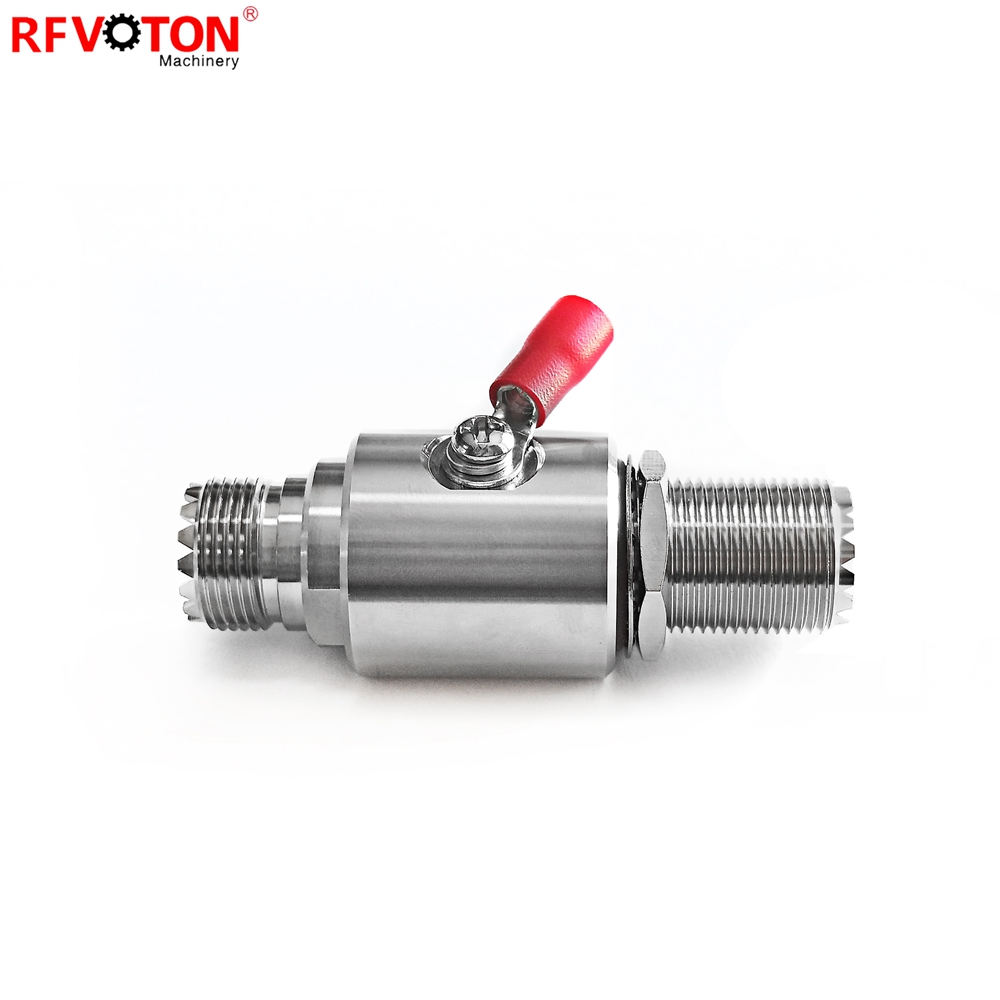

RFVOTON 90V Antenna lightning protector UHF coaxial surge protector rf surge arrestor
Antenna lightning protector UHF coaxial surge protector rf surge arrestor
RF coaxial Arrestor 7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
Our custom RF cable assemblies are built-in and shipped worldwide
Telephone signal lightning arrester is mainly used in the surge protection of all kinds of telephone wire, audio transmission line
and equipment interface. With over voltage and over current suppression unit installed inside and two levels connection circuit
protection design, the SPD can suppress surge voltage and current effectively. The product has applied the malfunction selfrecovery design, thus providing thorough protection for the signal and the appliance.
According to the definition of the partition of lightning protection, this device can be installed on LPZ0A-2 or a higher interface,
or it can be installed directly at the front-end of the protected equipment. It can be used for the surge protection of telephone
system/ADSL and ISDN telecom circuit.
A surge protector (or surge arrestpr or surge protection) is an appliance or device designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or shorting to ground any unwanted voltages above a safe threshold.
coaxial surge protection
coaxial rf surge protector
antenna lightning arrester
|
Freq Range |
DC-3GHz / DC-6GHz |
|
Voltage |
90V / 220V / 250V / 350V |
|
Protection |
Gas Discharge T ube / 1/4 wavelength |
|
Insertion Loss |
<0.1Db |
| Return Loss |
<-26dB |
|
Max Surge Voltage Let Through |
<200 mV |
|
Through Put Energy |
<5 nJ |
|
Impedance |
50 OHMS / 75 OHMS |
|
Max Power |
50W |
|
Ingress Protection |
IP65 |
|
Grounding Screw/LUG |
Y |
|
Body |
Brass |
|
Contacts |
Bronze |
|
VSWR |
<1.1(DC-3G) |
|
Max Current Load |
10A |
|
Nominal Discharge Current (kAMP) |
5 kAMP |
|
Max Discharge Current (kAMP) |
20 kAMP |
|
Impulse Current (kAMP) |
2.5 kAMP |
|
Operating Temp(degrees C) |
(-40 to +85) C |
|
ROHS |
Yes |
|
ISO-9000 Certified |
Yes |
APPLICABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15.
Zhenjiang Voton Machinery Co., Ltd.
Zhenjiang Voton Machinery Co., Ltd. is located in Zhenjiang City and is specialized in manufacturing, designing and researching RF connectors, coaxial cable,antenna,cable assembly.We also agent as Glow starters and microwave products.With 27 experienced and professional team, we have exported our products to many countries and regions all over the world, especially America and Europe. We also provide OEM services.We have been produced pins for connector as OEM’S manufacturer . Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.We have quite strict quality control before shipment,this is why RFVOTON hot sale in the world.coaxial surge protection
Q:what’s your company MOQ?
A: In generally, if use customer brand, we will ask at least 500-800pcs, this we can negotiate.
Q: What’s your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.
If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.Lmr Series 50Ohm Coaxial Cablecoaxial rf surge protector
what we could do for you are :
1) factory sell directly
2) long-term,strong and steady supplying ability
3) delivery time: 1-2 working days
4) do as your requirements on package,brand or other designs
5) strong sales promotion policy
6) ex-factory price and competitive price
7) we can provide you a good survice
8) replying you asap.(will reply you 10-20 mins on the basis of getting your require.)antenna lightning arrester
Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.
| Q:what’s your company MOQ? |
| A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate. |
| Q: What’s your delivery time? |
| A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production. |
| Q: Can your company accept customize? |
| A: Welcome OEM & ODM. |
| Q: How do you solve after sale service? |
| A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you. |
| Q: Can you send a sample for us to develop? |
| A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order. |
