 RF cable 1M semi flexible rg402 with 7/16 4 holes flange jack jack to 7/16 4 holes flange jack jack connector

RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)

We focus on coaxial assemblies

Our custom RF cable assemblies are built-in and shipped worldwide

RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB

RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U

RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications

If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department

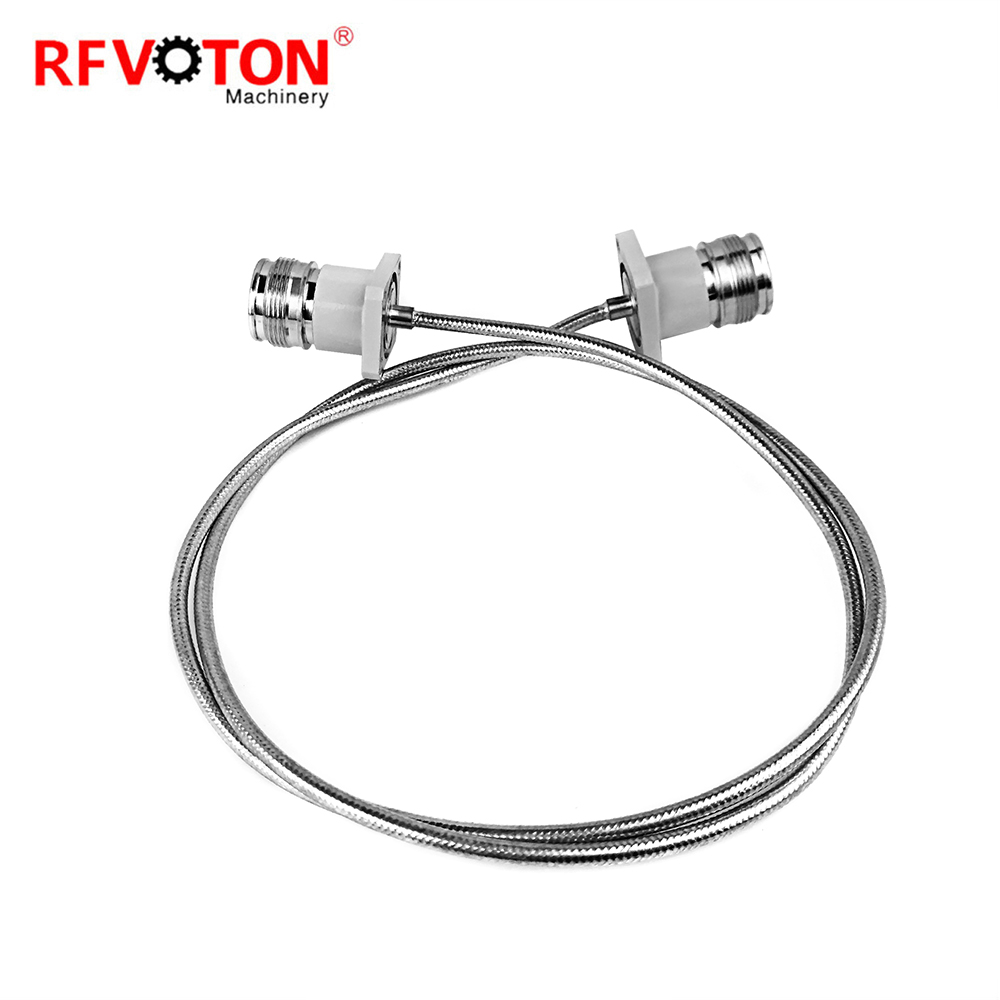

1M rg402 with 7/16 4 holes flange

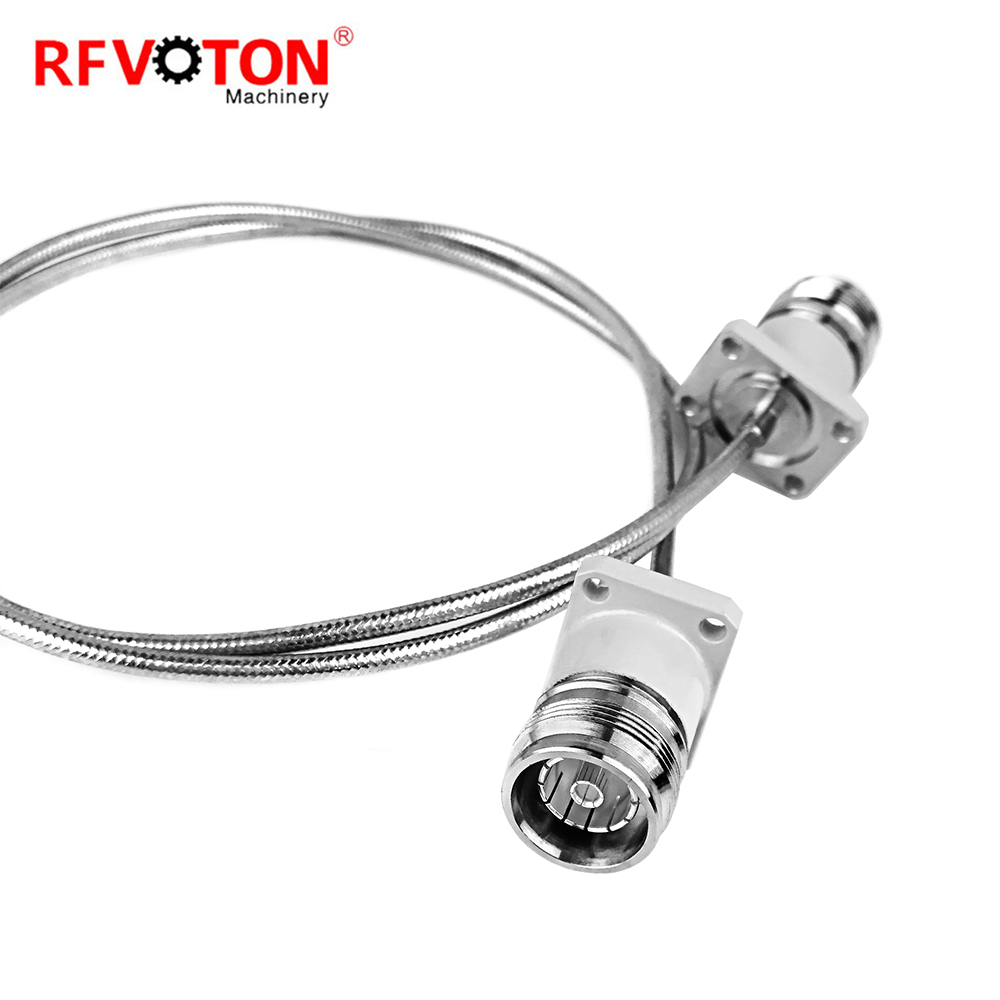

rg402 with 7/16 4 holes flange connector

RF rg402 with 7/16 to 7/16 4 holes flange jack

•


  Temperature range	-40~+85°C
  Vibration	100m/s2 (10~500Hz)
  Impedance	50 OHM
  Frequency Range	DC – 7.5GHz
  Working Voltage	2700V max
  Withstand Voltage	4000V rms
  Center Contact	≤ 0.4 mΩ
  Outer Contact

  ≤1.5mΩ

  Insulation resistance

  ≥1000M OHM

  VSWR

  ≤ 1.2

  Durability (mating)

  ≥500 (cycles)

  Average powe

   3KW  max

   Insertion loss

  0.15dB (7.5GHz max)

  VSWR

  Straight     ≤ 1.10

  Right angle  ≤ 1.25

  Material & Plating

  Body	Brass	Nickel plated / Alloy plated
  Inner Pin	Brass	Gold plated
  Resilient Contact	Beryllium Copper	Gold plated
  Socket Contact	Beryllium or tin bronze	Gold plated
  Insulator	PTFE
  Crimp Ferrule	Copper alloy	Nickel / Gold plated
  O-ring sealing	Silicone Rubber



  APPLICABLE STANDARD
  MIL-C-39012;
  CECC 22210;
  IEC 60169-16.
