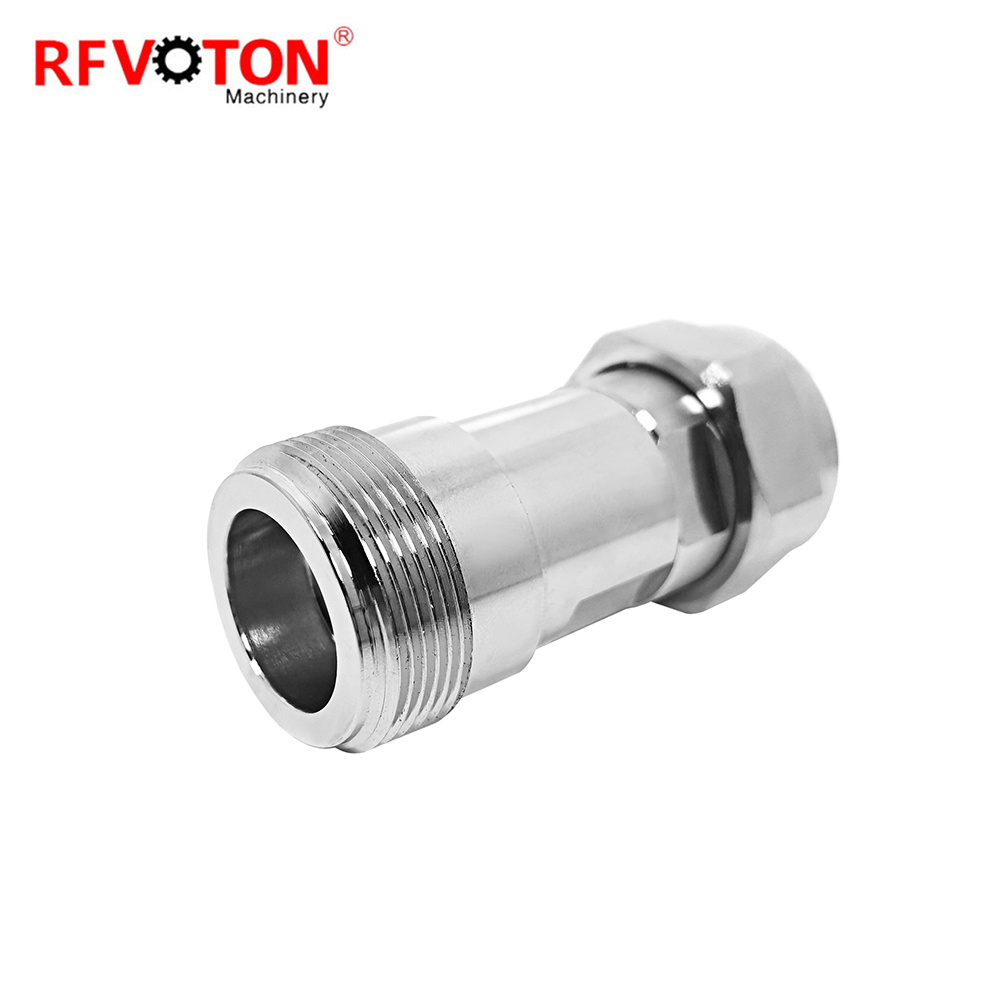

RF Adapter7/16 DIN male plug to LC female jack Coaxial Connector
RF Adapter7/16 DIN male plug to LC female jack Coaxial Connector
RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
RF Adapter7/16 DIN to LC
RF Adapter7/16 DIN plug to LC jack
RF Adapter7/16 DIN male to LC female
Temperature range
-40~+85°C
Vibration
100m/s2 (10~500Hz)
Impedance
50 OHM
Frequency Range
DC – 7.5GHz
Working Voltage
2700V max
Withstand Voltage4000V rms
Center Contact
≤ 0.4 mΩOuter Contact≤1.5mΩ
Insulation resistance
≥1000M OHM
VSWR
≤ 1.2
Durability (mating)
≥500 (cycles)
Average powe
3KW max
Insertion loss0.15dB (7.5GHz max) VSWRStraight ≤ 1.10
Right angle ≤ 1.25
Material & Plating
Body
Brass
Nickel plated / Alloy plated
Inner Pin
Brass
Gold plated
Resilient Contact
Beryllium Copper
Gold plated
Socket Contact
Beryllium or tin bronze
Gold plated
Insulator
PTFE
Crimp Ferrule
Copper alloy
Nickel / Gold plated
O-ring sealing
Silicone Rubber
APPLICABLE STANDARD MIL-C-39012; CECC 22210; IEC 60169-16.
Zhenjiang Voton Machinery Co., Ltd.
Zhenjiang Voton Machinery Co., Ltd. is located in Zhenjiang City and is specialized in manufacturing, designing and researching RF connectors, coaxial cable,antenna,cable assembly.We also agent as Glow starters and microwave products.With 27 experienced and professional team, we have exported our products to many countries and regions all over the world, especially America and Europe. We also provide OEM services.We have been produced pins for connector as OEM'S manufacturer . Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.We have quite strict quality control before shipment,this is why RFVOTON hot sale in the world.TNC r/a connector
Q:what's your company MOQ? A: In generally, if use customer brand, we will ask at least 500-800pcs, this we can negotiate. Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.
If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.Lmr Series 50Ohm Coaxial CableTNC male ra connector
what we could do for you are : 1) factory sell directly 2) long-term,strong and steady supplying ability 3) delivery time: 1-2 working days 4) do as your requirements on package,brand or other designs 5) strong sales promotion policy 6) ex-factory price and competitive price 7) we can provide you a good survice 8) replying you asap.(will reply you 10-20 mins on the basis of getting your require.)TNC male connector
Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.
| Q:what's your company MOQ? |
| A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate. |
| Q: What's your delivery time? |
| A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production. |
| Q: Can your company accept customize? |
| A: Welcome OEM & ODM. |
| Q: How do you solve after sale service? |
| A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you. |
| Q: Can you send a sample for us to develop? |
| A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order. |
