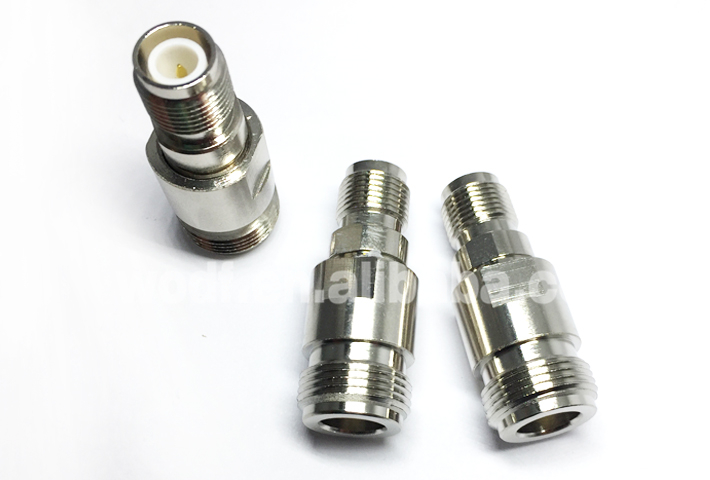

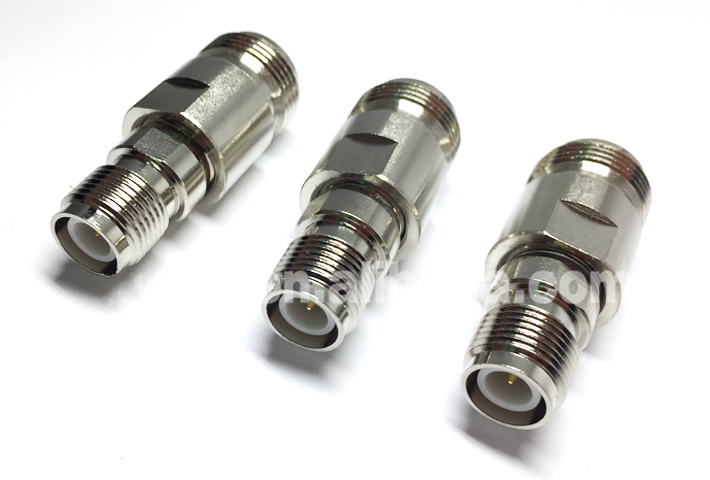

Reverse Adaptor Tnc switch Female To N Male Adapter RF Coax Connector Straight
- RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
- We focus on coaxial assemblies
- Our custom RF cable assemblies are built-in and shipped worldwide
- RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
- RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
- RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
- If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
-
The TNC series products are a kind of whorl joining, it has work width frequently, join reliable, such characteristics as ant-vibration performance is good, Suitable for radio equipment and instrument and join the cable to use.
-
Temperature range
-40~+85°C
Vibration
100m/s2 (10~500Hz)
Impedance
50 OHM
Frequency Range
DC – 11GHz
Working Voltage
2700V max
Break-down Voltage
4000V rms @ sea level
Contact resistance
≤0.4 OHM @ inner contact
≤1.5 OHM @ outer contactAverage power
3KW max
Insulation resistance
≥10000M OHM
VSWR
≤ 1.10
Durability (mating)
≥500 (cycles)
-
Material & Plating
Body
Brass
Nickel plated / Alloy plated
Inner Pin
Brass
Gold plated
Resilient Contact
Beryllium Copper
Gold plated
Socket Contact
Beryllium or tin bronze
Gold plated
Insulator
PTFE
Crimp Ferrule
Copper alloy
Nickel / Gold plated
O-ring sealing
Silicone Rubber
APPLICABLE STANDARD
MIL-C-39012;
CECC 22210;IEC 60169-16
-
.
Q:what’s your company MOQ?
A: In generally, if use customer brand, we will ask at least 500-800pcs, this we can negotiate.
Q: What’s your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.
If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
What we could do for you are:
1) factory sell directly
2) long-term,strong and steady supplying ability
3) delivery time: 1-2 working days
4) do as your requirements on package,brand or other designs
5) strong sales promotion policy
6) ex-factory price and competitive price
7) we can provide you a good survice
8) replying you asap.(will reply you 10-20 mins on the basis of getting your require.)
Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.
|
