Best Manufacture Direct 40cm RG174 Pigtail Jumper Cable with Bnc Male to Female RF Connector Manufacturer and Factory

Manufacture Direct 40cm RG174 Pigtail Jumper Cable with Bnc Male to Female RF Connector

short description:

Send email to us

Product Detail

Product Tags

Overview

Quick Details

Place of Origin:

Jiangsu, China

Brand Name:

Voton

Model Number:

BNC-M-F-RG174-CA-40cm-01

Conductor Material:

Copper

Insulation Material:

Jacket:

PVC

Number of Conductors:

Application:

Plating:

Nickel/gold

Material:

Copper

Insulator:

PTFE

Temperature Range:

-55~+155°C (PE Cable -40~+85°C)

Vibration:

100m/S2 (10~500Hz)

Certificate:

ISO9001

Connector type:

BNC Connector

Impedance:

50Ω

Insulation Resistance:

≥ 10000 MΩ

Type:

Product Description

Detailed Images

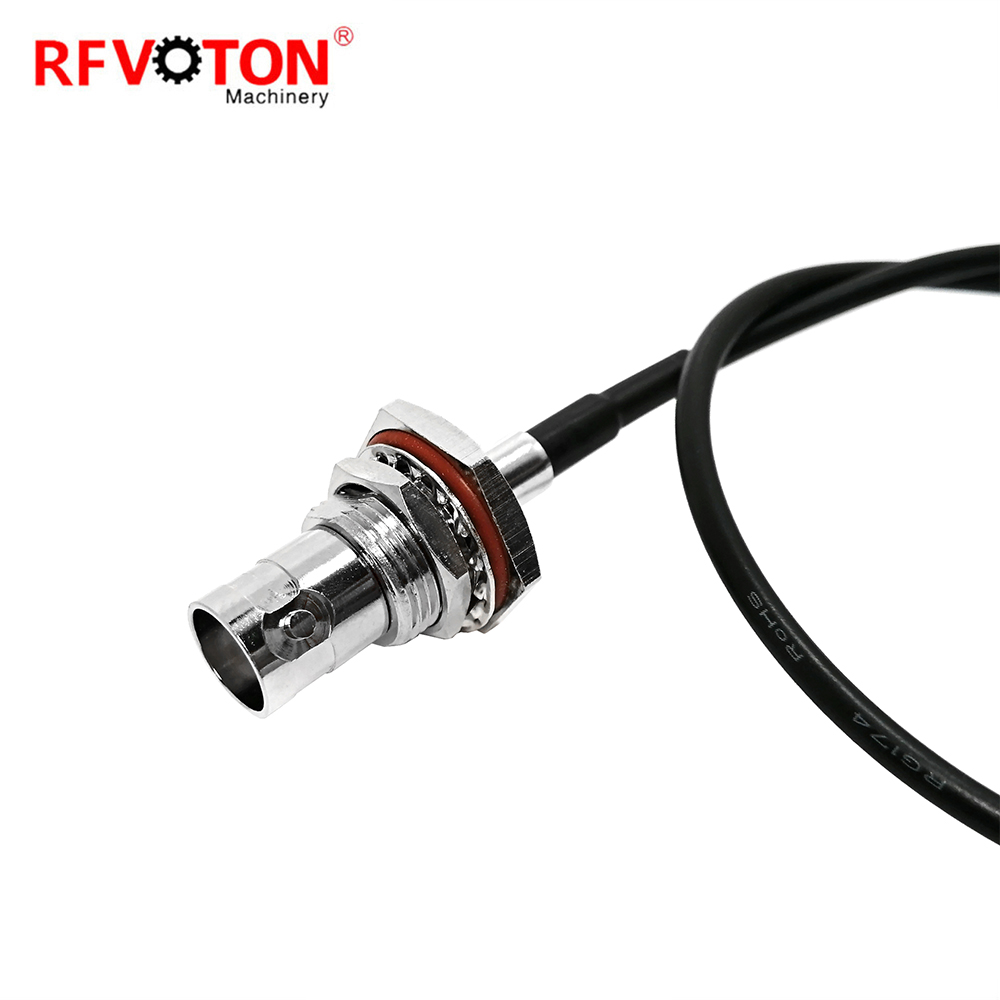

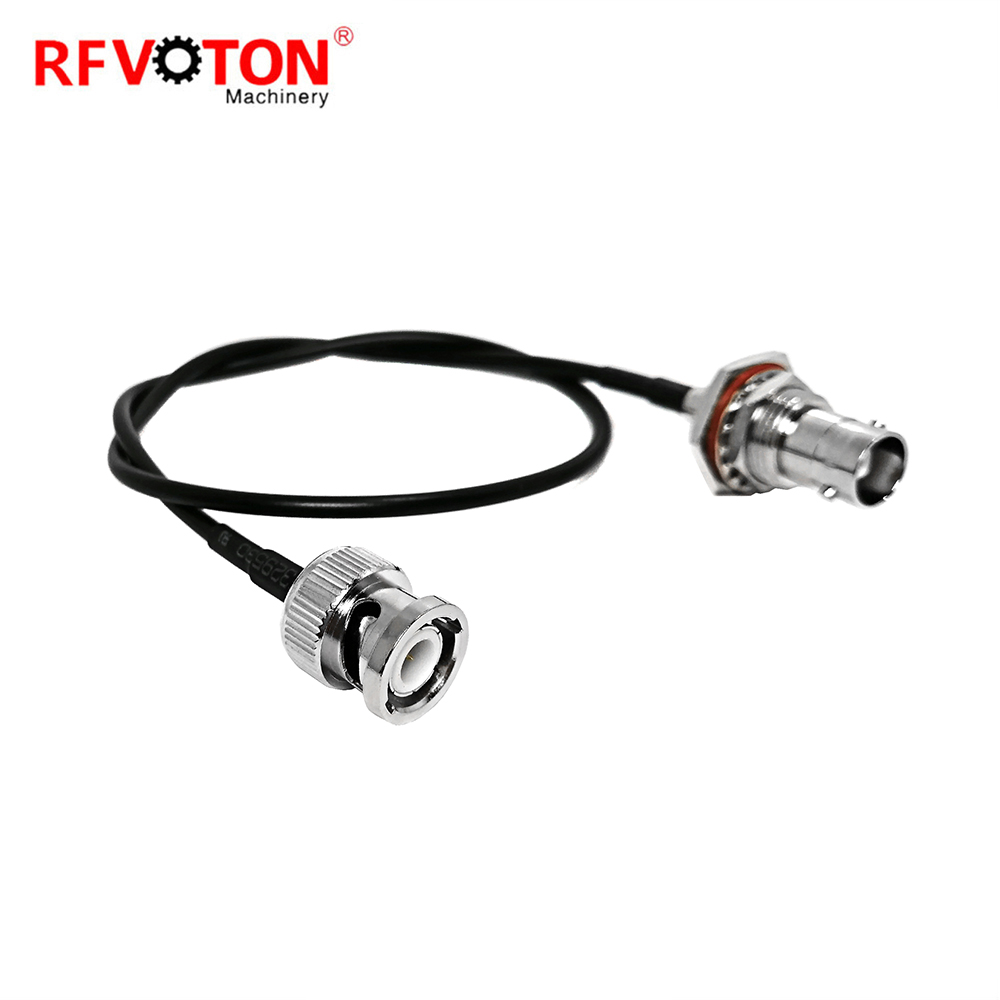

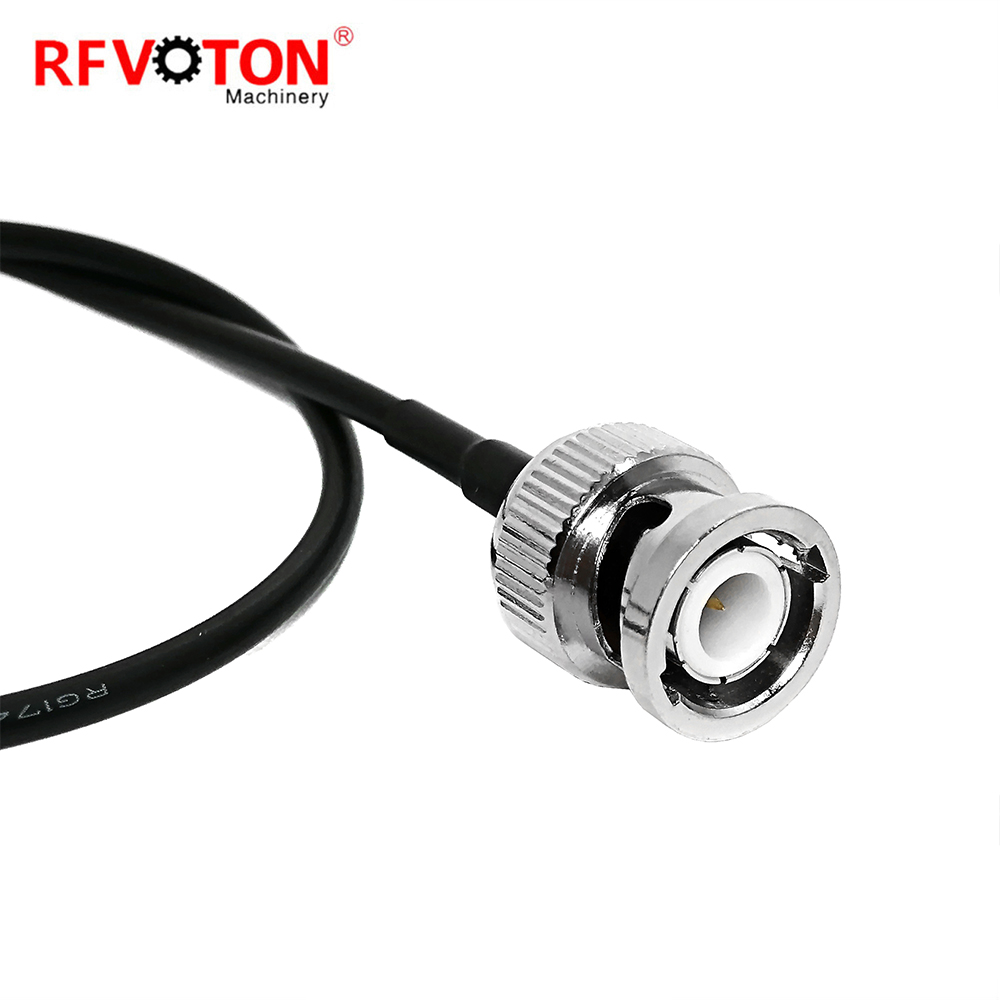

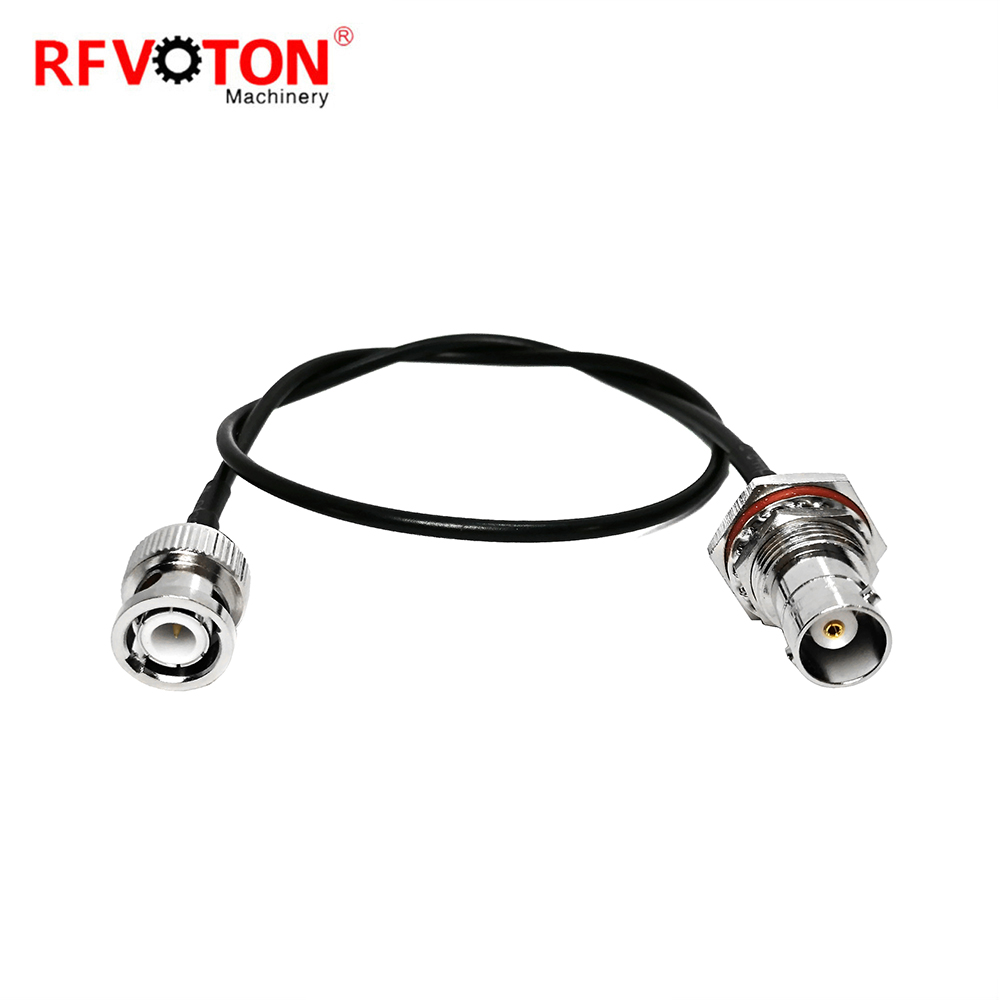

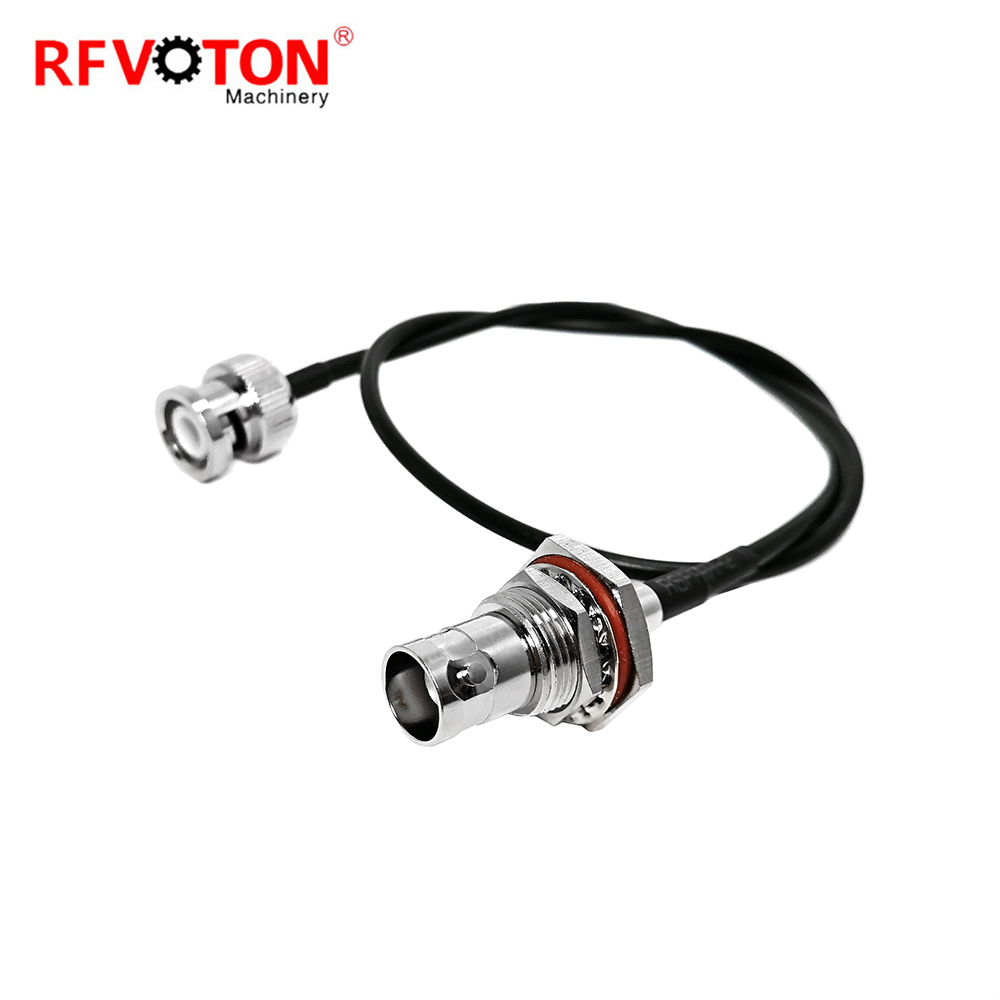

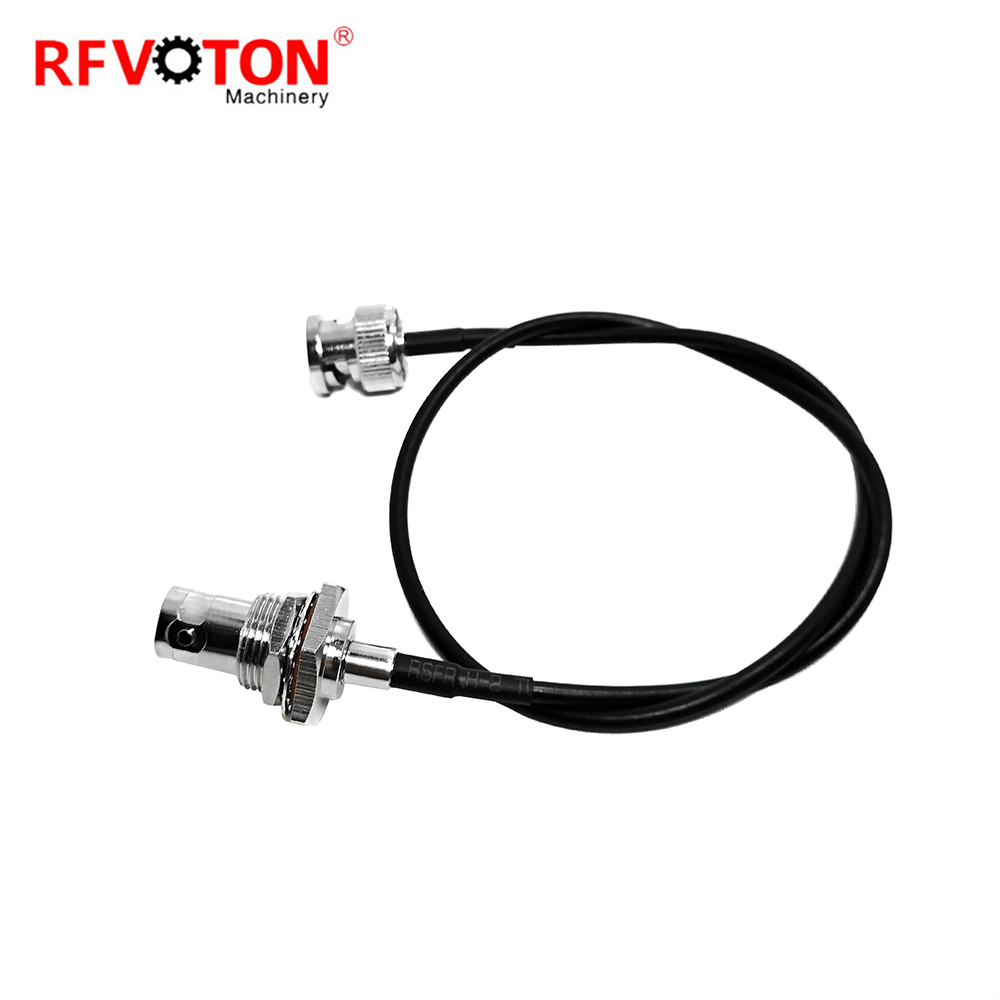

Manufacture Direct 40cm RG174 Pigtail Jumper Cable with Bnc Male to Female RF Connector

BNC Electrical Characteristics:
Temperature Range	-55~+155°C (PE Cable -40~+85°C)
Impedance	50Ω, 75Ω
Frequency Range	DC-4GHz
Insertion Loss	less than or equal to 0.24dB/6GHz
Withstanding Voltage	1500V r.m.s at sea level
Working Voltage	500Vr.m.s at sea level
Insulation Resistance	≥ 5000 MΩ
Durability	≥ 500(cycles)
Contact resistance:	Center Contact ≤ 1.5mΩ Outer Contact ≤ 1mΩ
Voltage Standing Wave Ratio:	Straight ≤ 1.22/3GHz Right angle ≤ 1.30/3GHz

Our Company

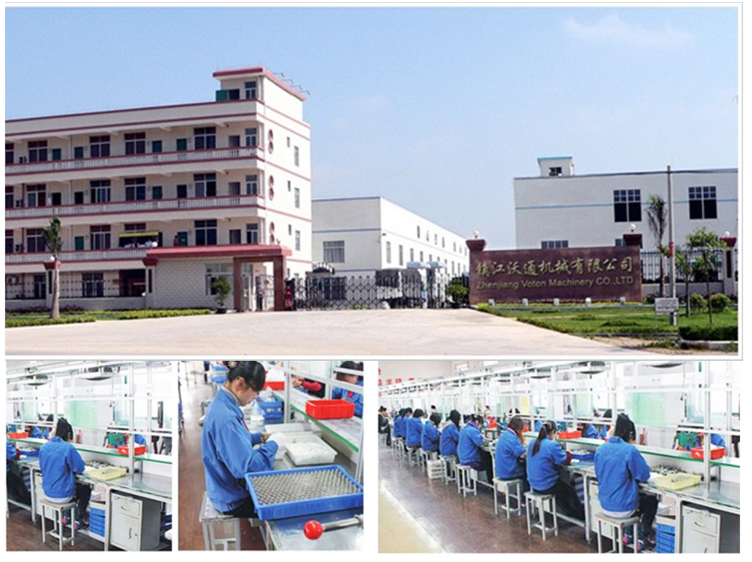

Zhenjiang Voton Machinery Co., Ltd.

Zhenjiang Voton Machinery Co., Ltd. is located in Zhenjiang City and is specialized in manufacturing, designing and researching RF connectors, coaxial cable,antenna,cable assembly.We also agent as Glow starters and microwave products.With 27 experienced and professional team, we have exported our products to many countries and regions all over the world, especially America and Europe. We also provide OEM services.We have been produced pins for connector as OEM’S manufacturer . Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.We have quite strict quality control before shipment,this is why RFVOTON hot sale in the world.
