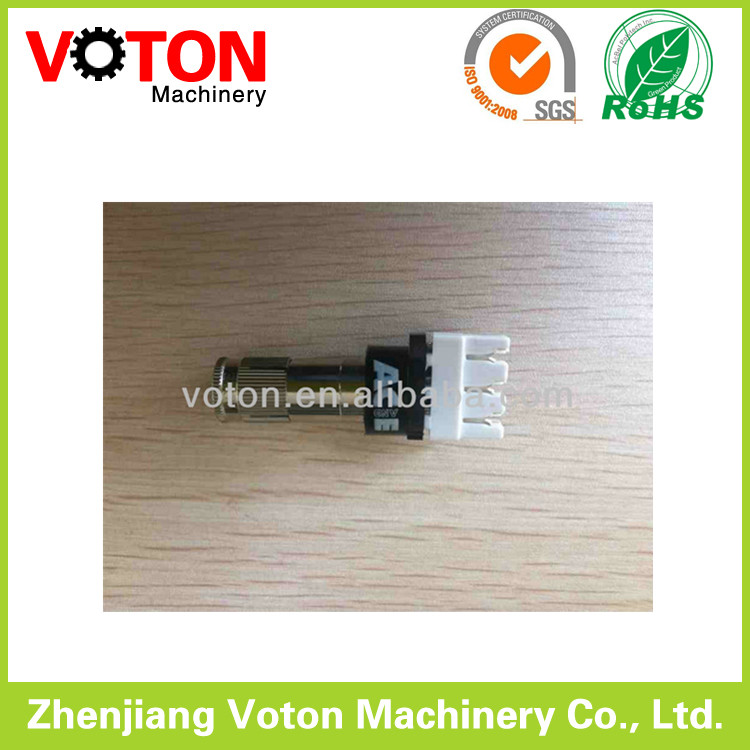

Major Technical Characteristics Type 1.6/5.6 Male to IDC balun Impedance                 75Ω unbalanced coaxial to 120Ω balanced twisted pair Frequency range Suitable for 51KHz to12.5MHz Bit Rates 2Mbit/s and 8Mbit/s Return Loss < -29dB for 2Mbit/s; < -21dB for 8Mbit/s Insertion Loss < 0.2dB for 2Mbit/s; < 0.3dB for 8Mbit/s Cross Talk Better than -80dB from 0.1 to 12MHz between any two baluns on a DDF strip with 20 mm centers Durability  ≥ 500 cycles Temperature range – 30°C to +75 °C Material & Plating Coaxial Body Brass Nickel plated Pin contact Brass Gold plated Insulator PTFE  IDC Wire 0.40-0.65mm conductor 0.70-1.40mm insulator Contacts Beryllium Copper Silver plated Weight and Pack 0.014KGS/PC (10pcs per blister packaging)
