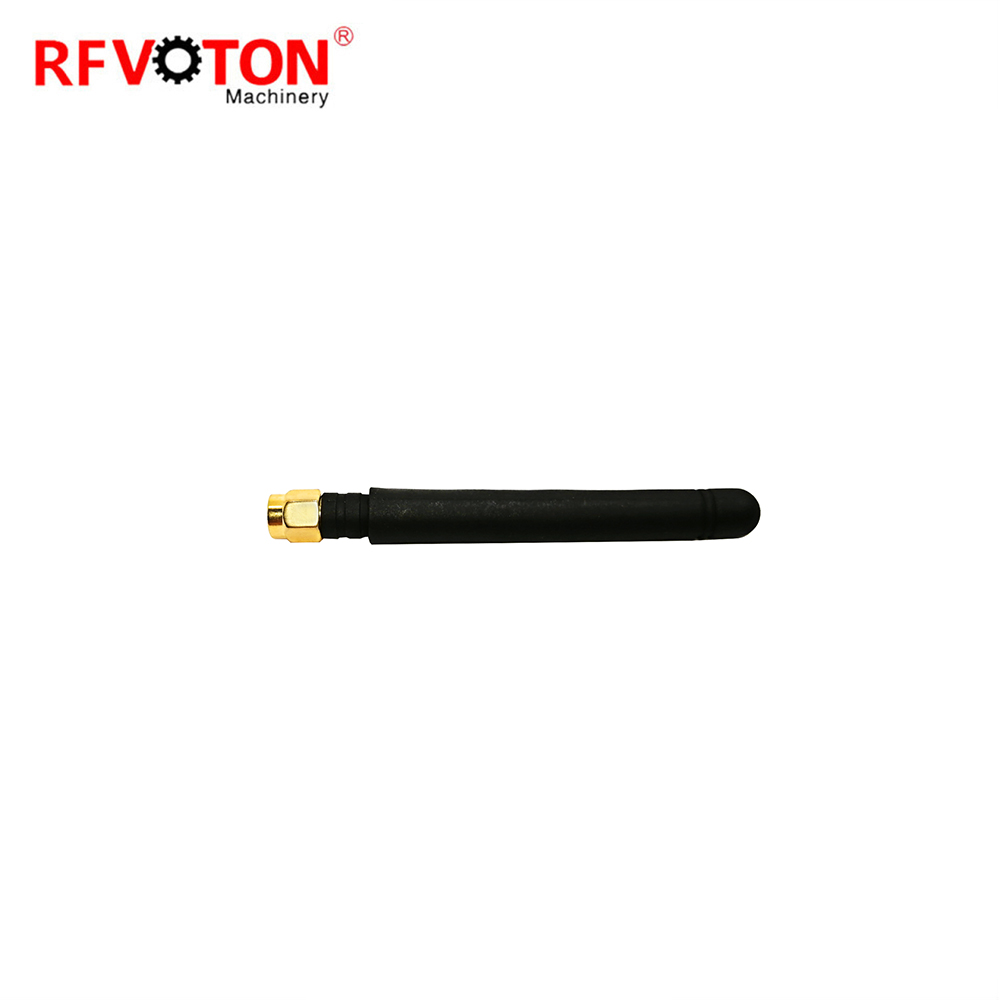

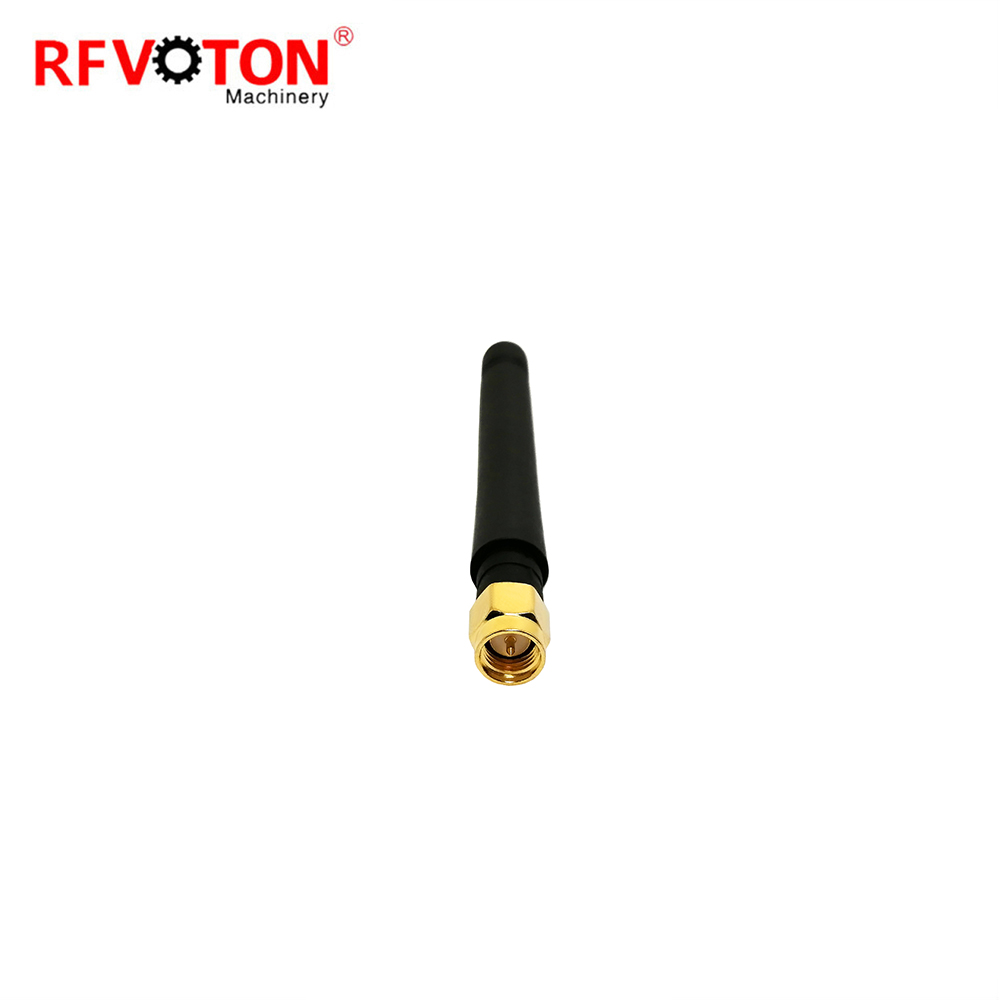

868mhz 3db sma male straight antenna 8.5cm
- Model Number:
-
868mhz sma antenna
- Place of Origin:
-
Jiangsu, China
- Frequency rate:
-
as per customer request
- Impendance:
-
50Ω
- Vibration:
-
100m/s2 (10~500Hz)
- Gain:
-
3/5/11/4/16 dbi
- Color:
-
White/Black
- Temperature range:
-
-40~+85°C
- Impedance:
-
50 OHM
- Peak gain:
-
0~12dBi
- VSWR:
-
≤ 1.2
- Max power:
-
50W

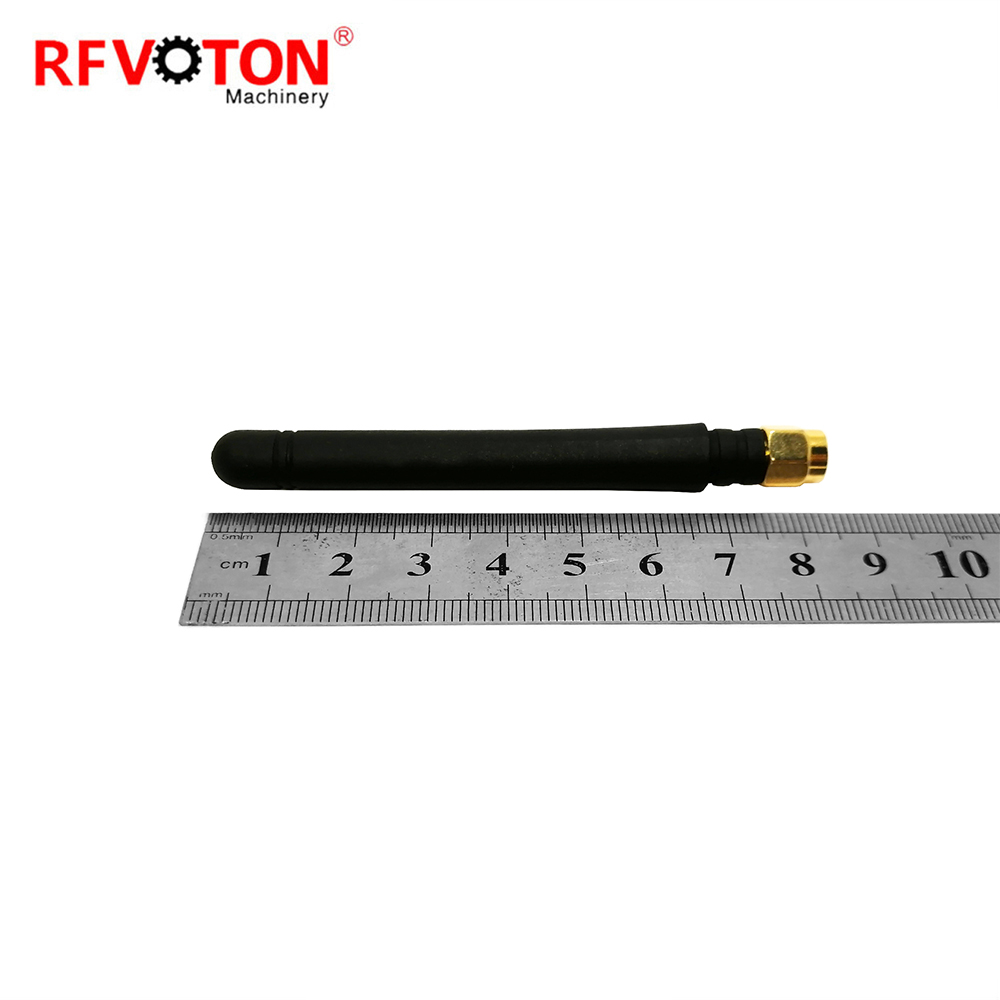

868mhz 3db sma male straight antenna 8.5cm
RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
Antennas are essential components of all radio equipment, and are used in radio broadcasting, broadcast television, two-way radio, communications receivers, radar, cell phones, satellite communications and other devices.
868mhz antenna
sma 868mhz antenna
sma male antenna 868mhz
|
Connector |
SMA/FME/TNC/BNC/N/SMB |
|
Plating |
Gold Plated / Nickel Plated / Black Chromium Plated |
| Radome material |
ABS |
|
Temperature range |
-40~+85°C |
|
Vibration |
100m/s2 (10~500Hz) |
|
Impedance |
50 OHM |
|
Frequency Range |
433M/GSM/2G /3G/GPRS/4G/ISM/5.8G |
|
Peak gain |
0~12dBi |
|
Radiation pattern |
Omin-directional in azimuth |
|
Contact resistance |
≤0.4 OHM @ inner contact |
|
Max power |
50W |
|
Lightning protection |
DC fround |
|
VSWR |
≤ 1.2 |
|
Durability (mating) |
≥500 (cycles) |
APPLICABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15.
